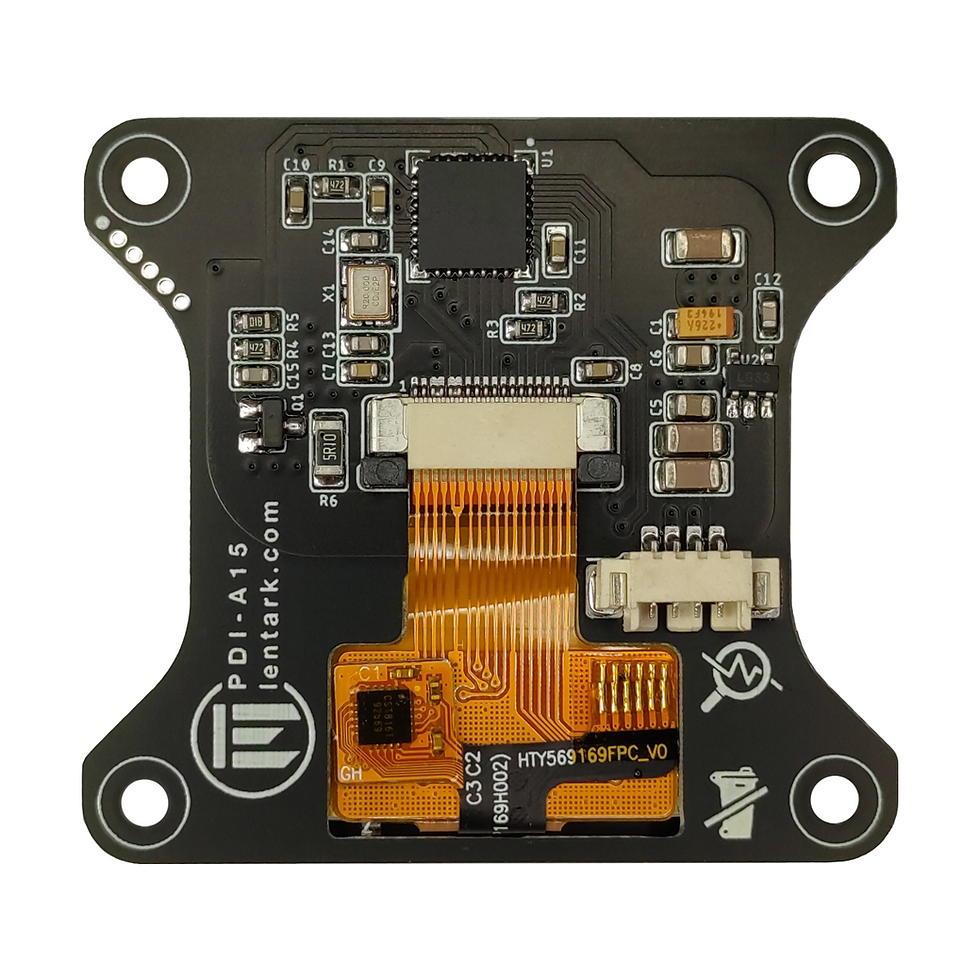

PDI-A15-MONITOR – Touchscreen Monitor Interface for PDI-A15-5V1A
PDI-A15-MONITOR is a compact touchscreen monitor interface designed for direct connection with the PDI-A15-5V1A SPWM and PWM driver module. It provides real-time monitoring of frequency, duty cycle, register status, operating mode, transition settings, limits, and device information through a 240 x 280 px color IPS TFT touchscreen. The module connects through a 4-pin cable and operates only as a monitoring interface; signal parameters cannot be changed through the screen.
- High-resolution display:
- Resolution: 240 × 280 px
- Type: color IPS TFT touchscreen
- User interface:
- Real-time register monitoring
- Frequency and duty cycle display for PDI-A15-5V1A
- Adjustable screen brightness
- Connectivity features:
- Connection: 4-pin connection cable
- Compatibility: direct connection with PDI-A15-5V1A
- Mounting and physical properties:
- Mounting: M2 mounting holes
- Design: compact and lightweight
- Touchscreen control:
- Easy interface navigation
- Fast register monitoring
- Energy efficiency:
- Low power consumption: 0.5 W
