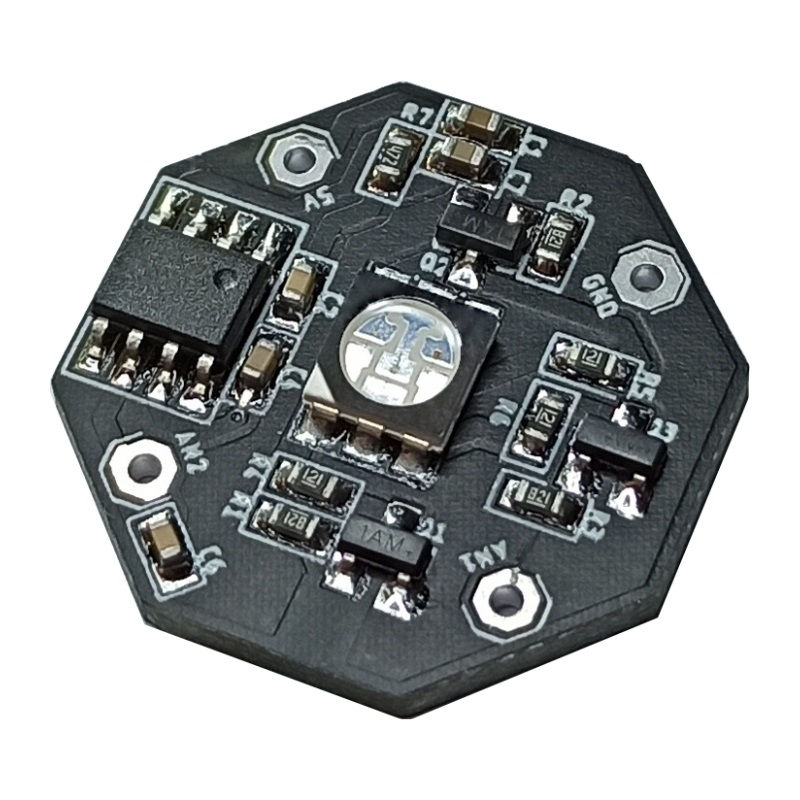

RGB5VB-1FX – 5 V Analog-Controlled Single RGB LED Module
RGB5VB-1FX represents the single-LED RGB5VB module family, including RGB5VB-1FS for standard color and brightness control and RGB5VB-1FT for brightness and color-transition period control.
RGB5VB-1FS and RGB5VB-1FT are 5 V analog-controlled single RGB LED modules designed for color, brightness, and transition control applications. The RGB5VB-1FS version provides standard RGB LED operation with brightness and color control inputs, while the RGB5VB-1FT version provides color transition operation with brightness and transition period control inputs. Both versions use a water-clear RGB LED and support 0–5 V analog control through AN1 and AN2 inputs.
- Low power consumption:
- RGB5VB-1FX: 0.40 W max.
- RGB5VB-4FX: 1.15 W max.
- High luminous intensity, @25 °C:
- Foryard: R: 700, G: 1500, B: 450 mcd
- Honglitronic: R: 270, G: 1000, B: 210 mcd
- Analog control:
- RGB5VB-XXS: color and brightness
- RGB5VB-XXT: transition period and brightness
- Lens type: water clear
- Operating voltage: 4.8 V – 5.2 V
