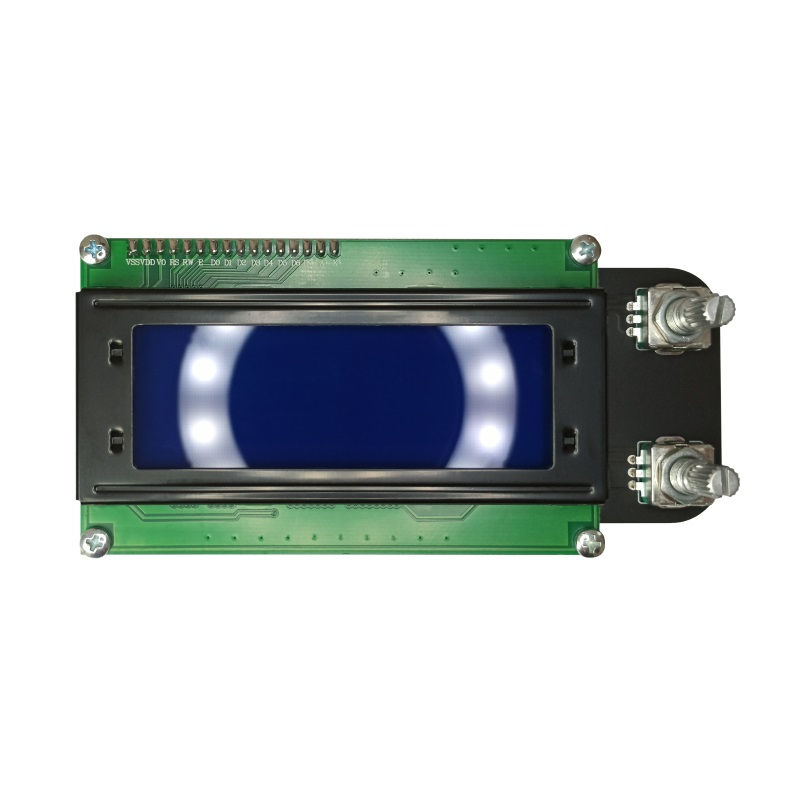

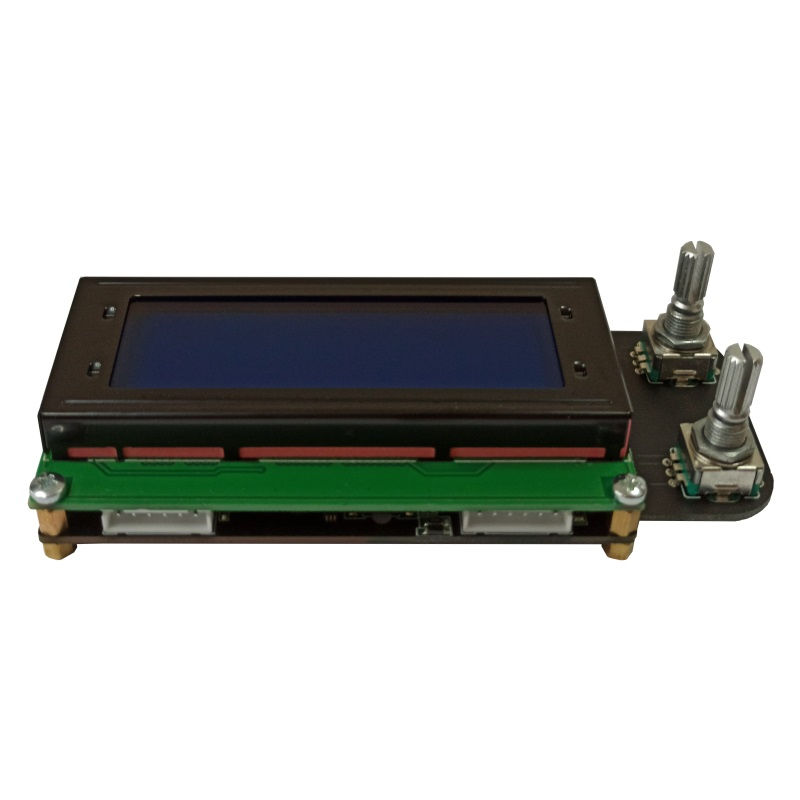

PDI-A20-24V4AISO – 2-Channel 200 kHz Isolated PWM Driver Interface
PDI-A20-24V4AISO is a two-channel isolated PWM driver interface with programmable frequency and duty-cycle control. It provides 1 Hz – 200 kHz PWM outputs with 0.1 Hz frequency resolution and 0.1% duty-cycle resolution. The isolated and referenceable outputs support 10 V – 24 V output reference levels and provide 4 A peak source and 6 A peak sink current for MOSFET, IGBT, H-bridge, half-bridge, transformer driver, and load control applications.
- Easy-to-use interface.
- Two-channel PWM signal output:
- Frequency range: 1 Hz – 200 kHz
- DutyA: 0% – 100%
- Independent 180° phase angle.
- Synchronous 180° phase angle.
- Inverted.
- DutyB: 0% – 100%
- High precision:
- Frequency resolution: 0.1 Hz
- Duty cycle resolution: 0.1%
- Frequency and duty cycle transitions:
- Functions:
- Ramp.
- Sine.
- Exponential.
- Logarithmic.
- Programmable transition time: 0 – 60 s
- Functions:
- Isolated outputs:
- VDDA, OUTA, VSSA
- VDDB, OUTB, VSSB
- Referenceable outputs:
- VDDA & VDDB: 10 V – 24 V
- High peak current capability:
- Peak source current: 4 A
- Peak sink current: 6 A
- Low rise and fall times: (CLOAD = 1.8 nF)
- tRise = 28 ns
- tFall = 26 ns
- Output signal manipulation:
- Overlap / Dead-Time feature:
- Overlapping.
- Dead-Time.
- Output signal switching:
- Internal/External
- Overlap / Dead-Time feature:
- Limitable signal parameters.
- Programmable device startup routine.
- Supporting functions:
- UART communication: 9600 – 115200 baud rate
- Sync CLK output.
